Stack Height: Tool, Shoe Lab Data & In-Depth Guide

Posted on 14 April, 2024 by Jovana Subic

Stack height guide hero image

We spent 50+ hours creating a tool and doing the research for this guide. We’ve covered stack height in great detail and backed everything with our lab data. Our tool will tell you which stack height works for you by using your criteria and going through our database.

Stack height is the amount of material between your feet and the ground. It is measured when your feet are not in the shoes as the midsole will compress due to a person’s weight, distorting the data. It’s given in millimeters and includes the height (thickness) of the insole, midsole and outsole.

For beginners, it’s best to choose running shoes that are not too flat (low to the ground) and not too high. Look for stack height in the 25-35mm range.

Measuring forefoot stack height (left) and heel stack height (right) using a digital caliper in RunRepeat lab

In running shoes, we focus on both heel stack height and forefoot stack height. Zero-drop running shoes are the only case where heel stack height = forefoot stack height. In all other cases, the heel is higher than the forefoot.

Tool: Which stack height do you need

Use our tool to find out which stack height range might work for you. Based on your criteria, the tool will offer THE 3 best-rated picks.

Stack height and its correlation to footstrike, ground feel, and runner’s weight - it’s all explained in detail below.

Stack height categories

Based on the heel stack height, we group shoes into 4 categories:

  1. Barefoot running shoes (the lowest stack height: 3-8mm)
  2. Minimalist running shoes (minimal stack height: 3-13mm)
  3. Regular running shoes (medium stack height: 9-35mm)
  4. Maximalist running shoes (maximal stack height: 35-50mm).

Barefoot running shoes have the lowest stack height - they are closest to the ground. They are also insanely flexible - usually, you can roll them up.

Barefoot running shoes are very flexible; pictured here: wear-testing the Merrell Vapor Glove 6

These shoes can’t be missed, no other shoes have such thin midsoles. In them, you feel the ground only. They ask for a serious adaptation period and it’s best to use them on the soft ground only in the beginning.

minimalist running shoe rolled like a bun
Minimalist Merrell Vapor Glove 6 is as flexible as it gets

There are 5 minimalist factors that make a shoe minimalist. In the case of the stack height, the minimal one means you get to feel the ground more than the shoe. It also means your body might adapt to the terrain because your legs will have to absorb the impact.

Flexibility of a minimalist running shoe

These shoes offer a “natural feel” while running - they won’t weigh you down or bother you with extra junk in the trunk. Runners use these shoes when a) doing tempo work or b) looking for a minimalist running experience.

If considering these for the first time, keep in mind that they:

  1. might increase the risk for Achilles tendon injury as this study has shown.
  2. might help with knee pain (as explained here).
  3. might reduce runners’ susceptibility to patellofemoral disorders (source).
  4. can improve running economy and performance in trained runners (read this study).

Regular running shoes are average in height: not minimalist, not maximalist. They don’t stand out. These shoes are usually very versatile and offer both cushioning and responsiveness.

Running in a regular running shoe: Pegasus 40, heel stack height 30.2 mm

These shoes are the most beginner-friendly. If you’re looking for softer running shoes, keep in mind that the hardness of the midsole does not seem to influence running-related injury risk.

Minimalist vs. maximalist running shoe cut in half

Maximal stack height is found in maximalist running shoes. No mistakes here, these shoes are huge.

Maximalist running shoe: Novablast 4, heel stack height: 39.2 mm

They are recommended for heel strikers, heavier runners, and runners looking for extra or plushy cushioning and avoiding any ground feel. Usually used for recovery runs and long runs.

Running in a maximalist running shoe Hoka Gaviota 4

Good to know if considering maximalist running shoes:

  1. Choosing a maximalist shoe may be less risky than minimalist shoes when shifting from traditional running footwear, particularly in the initial month of exposure (source).
  2. Runners who are new to running in a maximal shoe may be at an increased risk of injury as shown in this study.
  3. The eversion mechanics in the maximal shoes from this study may place runners at a greater risk of injury (source).
  4. Running in highly cushioned shoes increases leg stiffness and amplifies impact loading (explained in this study).
  5. Maximalist running shoes may increase the external impact loading during downhill treadmill running (read more here).
  6. Highly cushioned shoes did not show immediate changes in running biomechanics (as explained here).

carbon plated maximalist shoe

A subgroup is made of carbon-plated running shoes - they are also maximalist but usually performance-oriented and race-ready. In this case, they are recommended for forefoot strikers and racing.

Carbon-plated running shoe cut in half in RunRepeat lab

How to measure the stack height

When looking at the brand’s specifications, stack height is sometimes given with and other times without the insole thickness. In our lab, we always include the insole because:

  1. You obviously run with your insoles
  2. We want consistency in our results
  3. We measure it the same way for all shoes using World Athletics standards.

Per rules set by World Athletics, stack height is measured at 12% and at 75% of the inside length of the shoe. This is exactly how we measure the stack height, and you can read more about it in our methodology. In case you want to do it yourself, this is how.

Stack height measuring

In our lab where we cut-open shoes to see what’s inside and measure all the possible segments, we also mark the 12% and the 75% of the inside length of the shoe prior to using a caliper.

black lines to mark where to measure the stack height
Marking a place where heel stack height will be measured per World Athletics guidelines
Running shoes ready to have their forefoot and heel stack heights measured

Tool: Stack height and heel drop correlation

Heel to toe drop is the difference between heel stack height and forefoot stack height. While heel-to-toe drop varies from 0mm up to 15mm, stack height varies from 3 to 50mm. Here are 4 examples from our lab:

4 different categories of heel drop

Lab insight: We rarely get the same numbers as those specified by the brands. So, take the brand’s numbers with a grain of salt and, better yet, consult the lab test results first. We wrote about these deviations extensively in our guide on the differences in stack heights

For example, Gaviota 3 has a 5mm drop as per its specifications, but in our lab, we measured almost 10mm. On Cloudswift is said to have a 7mm drop and we measured 11.6mm.

Stack height and ground feel

The amount of cushioning separates running shoes into 4 different categories.

Running shoe categories based on stack height

These categories don’t only tell us the stack height, but also how much ground feel you can expect. The more you feel the ground, the less you feel the shoe and vice versa.

This would be rather intuitive if race-ready maximalist shoes haven’t flooded the market. Before that, it was simple: the smaller the stack height, the better the experience for lightweight runners. More stack height and heavier runners can enjoy all the cushioning and not feel dragged down by the shoe’s weight.

Shoe type

Barefoot

barefoot

Minimalist

minimalist

Regular

regular

Maximalist

maximalist

Carbon-plated maximalist

carbon plated

Runner's weight Light Lighter Any Heavy Any

Stack height & foot strike correlation

How and where you land while running depends not only on your running form but also on the amount of cushioning in your shoes. There are 3 types of foot strikes:

  1. Forefoot strike (landing on your toes)
  2. Midfoot strike
  3. Rearfoot strike (landing on your heel).

It’s best to look for cushioning in the places where you land.

In our database, the breakdown looks like this:

  • 42.3% of shoes are made for heel strikers,
  • 34.1% of shoes are made for all foot strikes,
  • 23.5% of shoes are made for forefoot and midfoot strikers.

In general, this is how foot strike relates to stack height:

  Heel stack height Foot strike

Barefoot shoes

barefoot shoe

3-8mm Forefoot, midfoot

Minimalist shoes

minimalist shoe

3-13mm Forefoot, midfoot

Regular shoes

regular shoe

9-29mm All

Maximalist shoes

maximalist shoe

30mm and up All, but mostly heel strike

Carbon-plated maximalist shoes

carbon plated shoe

30mm and up Forefoot

Stack height for heel strikers

Since impact forces are the highest in heel striking, that type of landing asks for the biggest amount of cushioning, i.e., the heel stack height should be high. You can browse shoes for heel strikers here.

Landing on the heel in Kayano 30

Also, this is the reason why shoes with lower forefoot stack height (barefoot and minimalist) are usually recommended to the forefoot and midfoot strikers.

Here's how heel-strike-friendly shoes look like with all that technology in the heel area:

heel strike running shoes with a focus on their heels

Running shoes for forefoot strikers don’t get to be so fancy.

Forefoot strikers: the price they have to pay

When talking about stack height, most people assume it’s the heel stack height. Forefoot stack height is often neglected simply because there are many more runners who land on their heels (94% of them as per this study) rather than on their toes. That’s why more people care about heel stack height.

That would all be ok if there were more shoes aimed at forefoot-striking runners, but there are not. Usually, we have shoes that work for all strikes and then, based on your personal preferences, you figure out if they work for you. Now, we are not taking into account the supershoes. Most of the carbon-plated shoes are aimed at forefoot strikers and it's especially evident when we look at the rubber placement on the outsole. Often, most of the rubber is placed under the forefoot.

forefoot strike for carbon plated shoes

Shoes with lower stack height might promote a midfoot or forefoot strike simply because there’s not enough cushion to absorb the impact forces happening when you land on your heel. If you’re a forefoot striker, pay attention to the forefoot stack height. You also might not need to pay for all the features packed at the heel of the shoe. If unsure, look at the collection of running shoes for forefoot and midfoot strike

Landing on the midfoot in Lone Peak 8

To learn more about foot strike and its importance for runners, read our in-depth guide on foot strike

Shoe flexibility and stack height

Across the above-mentioned categories (from barefoot to maximalist), it’s obvious that with the increase in stack height, shoes get stiffer.

Measuring stiffness of a running shoe with a digital force gauge
Cushioning type % of all shoes Average heel stack height
Very Flexible 3.2 13.8
Flexible 65.0 26.2
Moderate 23.7 27.5
Stiff 6.3 30.2
Very stiff 1.8 31.2

More midsole material makes the shoes more difficult to bend. Carbon plates add extra stiffness as well. That’s why Saucony Endorphin Pro 2 scored the highest in our lab when doing the flexibility test:

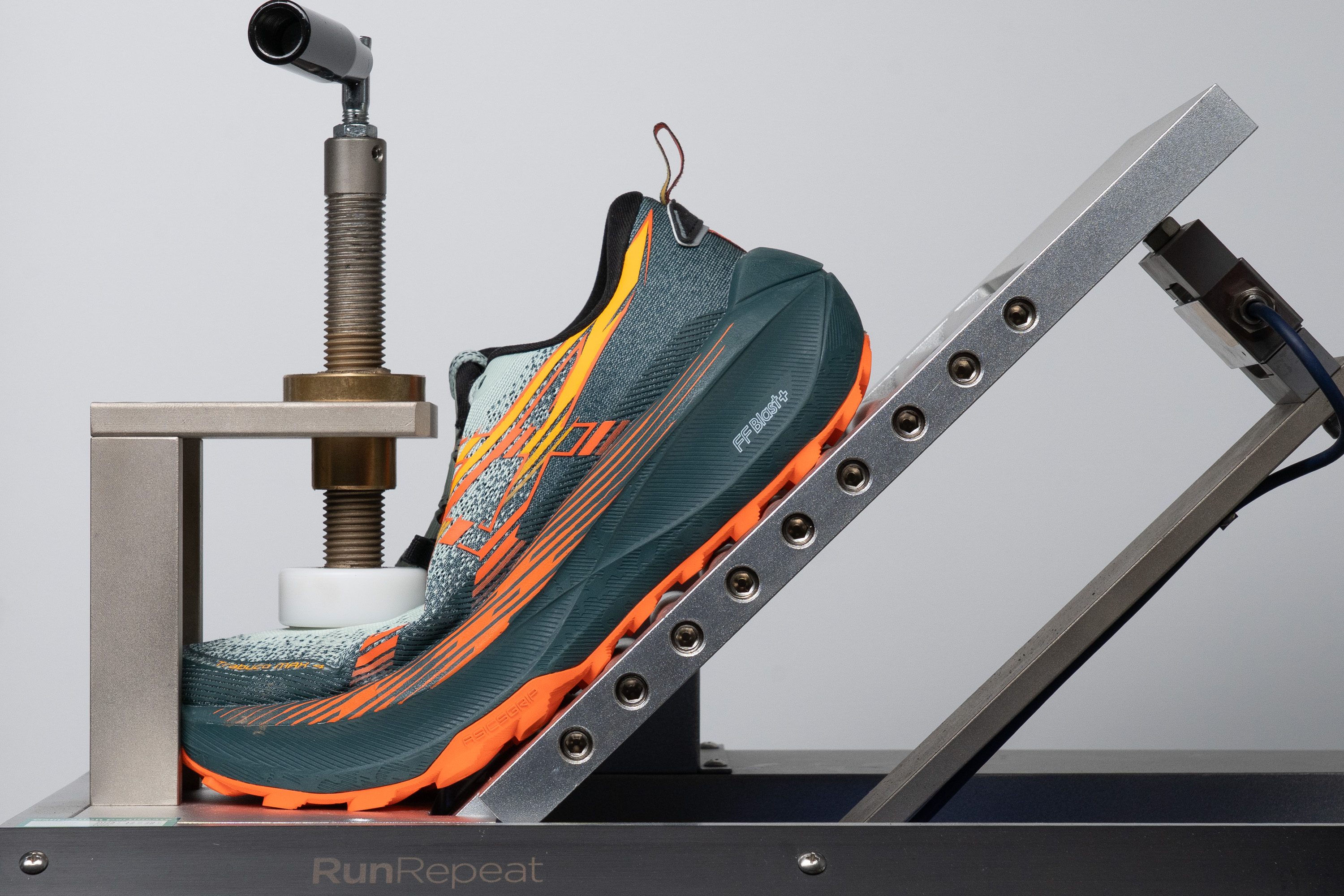

 Testing the flexibility (stiffness) of Brooks Ghost Max in RunRepeat lab

Disqualified when higher than 40mm

For recreational runners, there’s no limit in stack height. Currently, it goes as high as 50mm at the heel. However, for competitive runners, especially those aiming for the podium, it’s best to check the regulations of the race in question. Currently, World Athletics has a limit of 40mm in heel stack height for official competitions.

Anything above means disqualification.

Example of a "disqualified" running shoe: Asics GlideRide 3 and its heel stack height of 42.7 mm
