Testing Methodology

Find out how we test shoes and how our testing methodology has evolved over time (and we keep improving it).

shoe cutting in runrepeat

How we test shoes

  1. We buy all the shoes with our own money, always in men's US 9
  2. We cut shoes in half and measure and assess over 20 parameters for each shoe
  3. We wear test all shoes
  4. You can see shoes that we’re currently testing in the lab on our Shoe Pipeline page.

3 shoes cut in half

Here, you will learn how we decide which shoes we buy next, where we store them, why we cut them in half, why we freeze shoes, why it is important to stick to World Athletic’s guidelines, and much much more.

Why we perform both wear tests and lab tests

To ensure the highest level of objectivity, we personally test shoes in the appropriate surroundings - whether it’s a street road, gym, hiking trails, basketball courts, track, etc., and we also cut the shoes in half and put them through numerous tests in the lab.

This way, we’re able to talk about how the shoe actually feels and performs and also back that up with 30+ lab data points. A caliper in the lab can tell us how thick a tongue is or how stiff a heel counter is, but they can’t tell us whether those materials itch. It’s where our personal experience comes in.

RunRepeat lab shoe reviews

Why we cut shoes in half

Shoes come in a pair. One shoe we keep whole. The other one is cut in half with our band saw. We do this because some tests need a shoe to be cut in half for them to be properly done. And because we are meticulous.

RunRepeat cutting shoes in half

The most important tests here are measuring the heel and forefoot stack heights (which allow us to calculate the heel drop) and measuring the softness of the midsole. Doing these tests on whole shoes would go against the World Athletics standards and common sense. The black lines visible on the midsole mark 12% and 75% of the shoe's internal length, which is exactly where we measure the heel and forefoot stack height.

World Athletic standards for measuring stack height and heel drop

Tests that we perform on one half of the shoe are:

  • Forefoot stack height measurement
  • Heel stack height measurement
  • Based on the forefoot and heel stack height, we calculate the heel drop
  • Softness of the midsole at room temperature. We even wrote a comprehensive guide about this called Why cutting running shoes in half is key to measuring midsole softness
  • Softness of the midsole in cold
  • Insole thickness
  • Tongue thickness.

Insole and tongue thickness

How we measure stack height and heel drop in the lab

To get accurate measurements of the forefoot and stack height, we honor the official guidelines from World Athletics. These guidelines are clear:

  1. The stack height must be determined at the exact center of the shoe rather than the sides.
  2. Heel stack height is measured at 12% of the shoe’s internal length.
  3. Forefoot stack height is measured at 75% of the shoe’s internal length.

To achieve this, the shoe must be cut in half. After measuring the internal length, we mark both places on the foam itself at 12% and 75% of the length. You can see the straight lines in our images, it’s where we pressed our caliper to measure the heel stack height and forefoot stack height.

Forefoot and heel stack height measurements

The heel drop is simply calculated: (heel stack height) - (forefoot stack height) = heel drop. And for us, it is that simple, thanks to our accurate measurements of the forefoot and heel stack height explained above.

We went down the rabbit hole, of course, and wrote a very in-depth guide: How brands' heel-to-toe drop measurements differ from reality. Spoiler alert: no brand provides accurate heel-to-toe drop measurements! This gives even more value to our test because you can always rely on it.

Why we put shoes in the freezer

Because we want to know what happens at winter temperatures. All of our other lab tests are done at room temperature. Putting the shoe in the freezer for 20 minutes allows us to simulate cold weather. Thanks to this setup, we’re able to tell how the shoe behaves in cold weather - how flexible and soft it is.

Freezer test to simulate cold weather in shoe testing

After the shoe has spent 20 minutes in the freezer, we use a durometer to check the softness of the midsole. We then compare this result to the one done at room temperature.

We also use a force gauge to bend the shoe to 90 degrees and measure its stiffness. This way, we’re able to compare the flexibility of the shoe at room temperature and in cold weather.

If you’d like to learn more about how shoes behave in different temperatures, head over to our guide Effects of temperature on running shoes.

How we measure the breathability of the shoe

We examine the upper of the shoe with a fine-tooth comb to give the most accurate breathability rating. This means we perform 3 tests to examine the breathability of the upper.

We wrote The definitive guide to running shoe breathability, which is the most extensive article on the topic the world has seen so far, and we invite you to have a look at it if this topic really interests you.

Smoke pump

We pump smoke into the shoe to see where the smoke comes out, which we directly correlate with where and how much the shoe breathes. Not all shoes breathe the same.

Breathability test done using a smoke machine

What we often see is the smoke getting out through the toe box, the perspiration holes on the toebox usually found on leather uppers, eyelets, the tongue, the sidewalls, or a combination of some of these areas.

For this test, we fill the shoe with smoke using a smoke machine and a pipe. When the shoe opening is very wide (like it is in Vans Slip-On), we also use duct tape to seal the entrance well.

We rate what we see on a scale of 1 to 5, where 5 is the most breathable.

Flashlight

We put the upper material against the flashlight: to see where the upper gets thicker and explain why the shoe is less breathable there. The biggest value of this test lies in the fact that it allows us to see where overlays and reinforcements are present on the upper when we put the flashlight behind it.

These extra layers may not be easily noticeable at first, so this light test allows us to understand why smoke did not go through such areas.

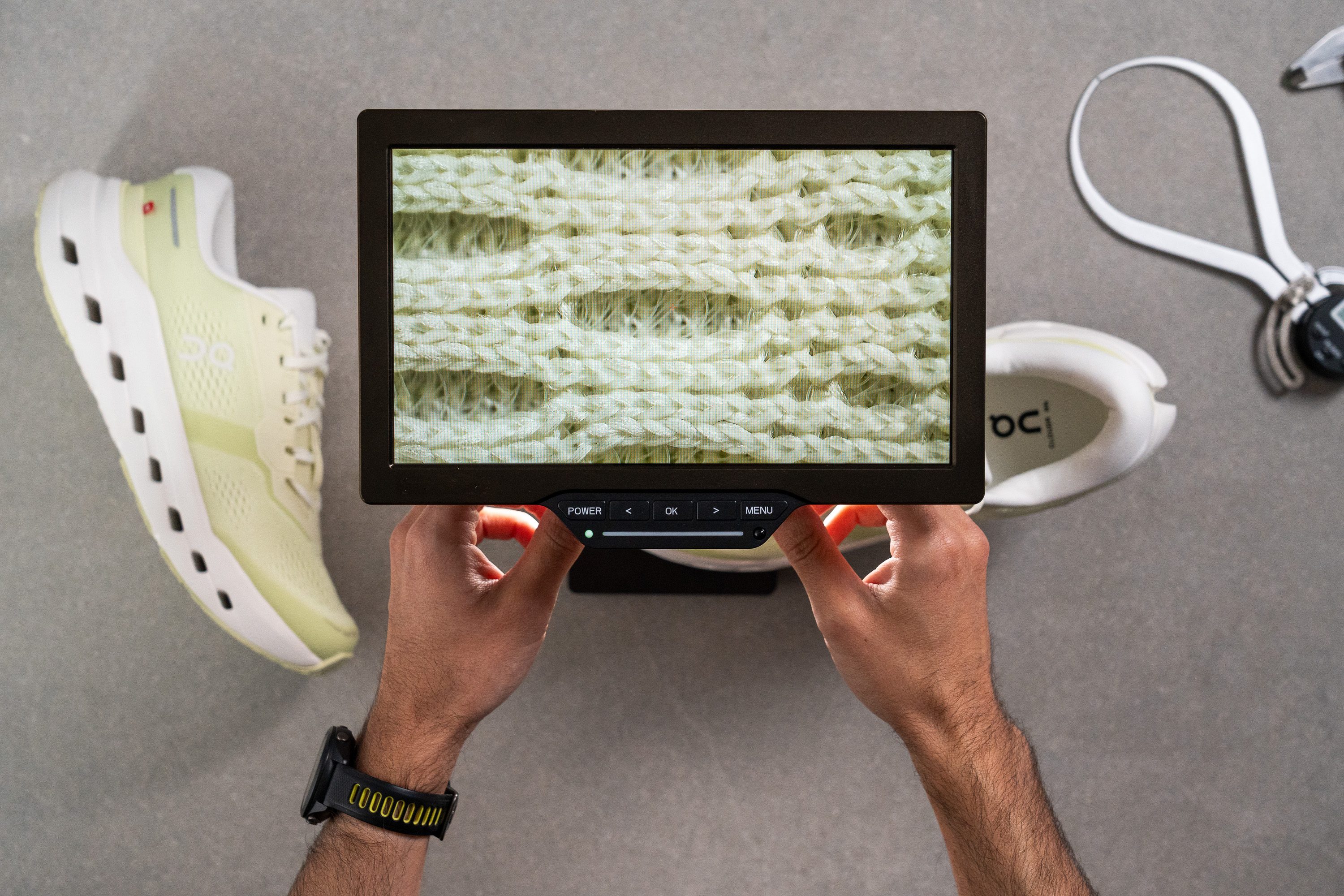

Microscope

However high or low the shoe scores on our smoke breathability test, this is where we find out why:

  • More breathable shoes have a lot of vent holes and/or the upper is very thin
  • Less breathable shoes have very few or no vent holes and/or the upper is very thick.

Analyzing upper material under the miscroscope

If there are no perforations, the material has to be very thin for the shoe to breathe properly. However, the material can be very thin yet plasticky and therefore not breathable.

Upper materials under the microscope

What we destroy with our Dremel and why

We use our Dremel to assess the durability of different parts of the shoe. We press it against the toebox, outsole, and heel padding.

Testing durability with a Dremel

Given that all of our tests are standardized, we always apply the same force and speed.

The durability of the outsole is correlated with the depth of the dent the Dremel has made. We measure the depth using a tire tread depth gauge.

Measuring the depth of the dent a Dremel has made

When checking the durability of the toebox and heel padding, we visually assess the damage and assign it a 1-5 rating, where 5 is the most durable.

Nike Lebron NXXT GEN toebox durability comparison

In this example, we pushed the Dremel against the upper. On the left: Nike Lebron NXXT GEN got the 3/5 rating for the toebox durability. On the right: Nike Lebron Witness 7 with a 1/5 rating (the least durable).

Above, we can see how Puma Magnify Nitro 2’s heel counter is destroyed within 5 seconds with threads flying around. It scored 1 out of 5 on this durability test. At the same time, on the right, we see how indestructible the Altra Rivera 3’s heel padding is, which is why it scored the perfect 5/5.

We’ve written more about the durability of the outsole (and grip and many other things) in our guide In-depth insights into running shoe outsoles (road and trail)

Why we torch the leather uppers

Torching the leather and scratching the burnt area allows us to check whether the leather is genuine or not.

RunRepeat shoe lab analyzing the quality of the leather

When it bursts into flames and melts, usually discovering different layers, we know it’s a fake one.  When it chars and merely gets scorched, and scratching it with our awl reveals only low-level damage, we notice it’s a dense, full-grain leather. It also smells like burnt hair.

Why we turn the lights off in the lab

Nothing to do with romance. We do it to find out whether the shoes are noticeable in the dark or not. Look how shiny Hoka Trail Code GTX is in the dark!

Hoka Trail Code GTX Reflective elements

How we decide which shoes to buy

When buying shoes, we consider the importance of the shoe and its availability. The importance is reflected in the shoe’s value and popularity. While popularity is obvious, the value is what also pushes the shoe to the top of the pipeline - it can be a shoe that’s a part of a collection or an important niche shoe (like mud or track spike).

We buy the shoes in men’s US 9. If not available in that size, we wait until it is. You can always check out our Pipeline to see the list of shoes we purchased or just started testing.

Shoe pipeline: which shoe is next?

Once the shoes arrive, we decide on the next batch. Within 1 week, we always test shoes that belong to 1 category only. We don’t do the same tests for, e.g., running and gym shoes. There are variations in the type and number of tests we do for each category, so we don’t mix them up. This also means that sometimes, less popular shoes are tested together with highly popular shoes because they belong to the same category. For a clear overview of shoes we just bought, took to the lab and started testing, or finished reviewing, see our Shoe Pipeline page.

Testing shoes in the lab

We also take the weather into account: when it’s really bad, we might do a batch of shoes that can be tested indoors, like gym shoes.

Shoes we do not test

We only test shoes that belong to these categories: running (both road and trail), track spikes, cross country, basketball, training, tennis, walking, hiking (shoes, boots, sandals), and sneakers. We don’t test shoes that belong to other categories.

We also do not test shoes that are released as a variation or a collaboration. We usually focus on the OG model. If there’s a new release that comes with an updated, more sustainable upper, recycled materials, or a collaboration, we stick to the OG shoe.

We buy all the shoes on our own

No sponsorships. This also means: no bias. We don’t have deals with brands, we purchase the shoes with our own money. Because of this, we’re able to test shoes only once they are widely available. We keep all the invoices and shoe boxes neatly stacked.

Wear-testing the shoes

We always test shoes in proper surroundings to truly understand how they feel and perform.

RunRepeat shoe reviews include wear tests and lab tests

Category

Wear test location

Road running

Mostly roads, we might give light trails a try as well.

Trail running

Trails, different surfaces. If lugs are smaller, we include roads as well.

Hiking

Trails, different surfaces.

Walking

Different surfaces, depending on the shoe.

Basketball

Basketball courts (indoor/outdoor).

Track spikes

Track

Cross country shoes

Different surfaces, depending on the spikes.

Training

Gym

Tennis

Tennis court, different surfaces

Sneakers

All-around, mostly casual walks around the town.

These tests help us understand shoes better so that we can deliver more in-depth and objective reviews.

Just knowing that, in the lab, the heel counter scored 4 out of 5 for stiffness does not always tell us everything. It can mean that the counter is harsh on the runner’s heel or that it is exceptionally stable. Or that it allows for heel slipping. Because we’re aware of all the nuances, we never skip the wear test.

1.7 Methodology update: June 2023

Our lab reviews are now presented in a standardized, clear-cut layout where each section is dedicated to a particular aspect of a shoe such as breathability, durability, cushioning, etc.

Each section includes multiple lab and field tests that give an in-depth look into what the shoe feels like and how it performs. We interpret every lab test result to make it clear to a beginner athlete or someone who is not geeky about shoes.

We measure and assess over 20 parameters for each shoe in our lab. These measurements are then compared to the average in a given shoe category.

In the example below, we measure the heel stack height of a road running shoe and present it in a table and a graph in comparison to the average heel stack of road running shoes.

New durability tests with a Dremel

Following the success of our toebox durability test, we now apply the Dremel to the shoe’s heel padding and outsole.

We chose heel padding because it is another area on the upper that is most prone to abrasion due to constant chafing against the ankle. We make sure that the Dremel always touches the padding with consistent force (3.2N) and speed (10 RPM). Due to the material’s fragility, we only hold the tool for 4 seconds. The damage is then assessed on a scale from 1 to 5.

When it comes to the rubber outsole, we hold the Dremel for 12 seconds with the same force (3.2N) and speed (10K RPM).

We then measure the depth of the dent with the help of a tire tread depth gauge.

New test to check leather and suede quality

Whenever a brand claims to use real leather or suede in its shoe, we equip ourselves with a butane torch to test that statement. We hold the fire against the corresponding parts of the upper for a few seconds.

What we look for in genuine material is for it to char and emit a smell akin to burnt hair. That is an indication of real leather and suede whereas melting or catching fire is a sign of fake (synthetic) material.

1.6 Methodology update: April 2023

Durability tests with a Dremel

To check the upper’s resistance to abrasion, we now perform a Dremel test on one of the most sensitive parts of the upper - the toebox fabric and the heel collar lining.

The shoe remains in a fixed position as we apply the Dremel to it. The following conditions are applied to all shoes for consistency:

  • 3.2N of force
  • 4 seconds
  • 10 000 RPM [August 2023 update: we lowered the speed to 5000 RPM]

To prevent the shoe’s color from creating bias, we put a piece of contrasting white plastic underneath the textile.

Close-up photos with a microscope

Having added a microscope to our lab, we are now able to take a much closer look at each shoe’s upper fabric and other parts.

Close-up shots of the upper, for example, help us support statements about the shoe’s breathability, waterproofing capacity, and durability.


Sample of a waterproof textile


Sample of a breathable mesh

Shoe rocker visualization

We added a visual demonstration of how much of a rocker is present in each shoe’s design. Initiating movement in the heel, we aim to replicate the heel-to-toe transition of the foot for heel strikers.

All shoe weights are presented in men’s US size 9

To make our data consistent, we measure every shoe’s weight in a men’s US 9. That’s because it is the most common shoe size and brands often provide shoe weight in this particular size.

However, in cases where we cannot get US 9, we buy US 8 or 8½ and use a proprietary formula to calculate for US 9.

shoe weight measurement

Nike ZoomX Invincible Run Flyknit 3 was measured at 9.4 oz (267g) in a US 8. It corresponds to 10 oz (284g) in a US 9.

The formula we use is based on the weight measurement of 4 different shoes from different brands measured in 10 different sizes.

shoe weight by size comparison

The measurements were kindly provided to us by Running Warehouse.

Improved toebox measurements

Previously, we only measured the toebox in its widest part (around the metatarsal joints).


But now we also measure the width near the toes (at the top of the shoe).

This allows us to check how much narrower the toebox gets toward the toes. It is possible that two shoes will have the same width in the metatarsal area but one of them would get much tighter around the toes.

1.5 Methodology update: August 2022

All the reviews tagged as Lab reviews consist of 2 things:

  1. doing lab tests
  2. field-testing the shoe

We start by taking the initial measurements in our lab, such as weight, width, flexibility, etc. Then we test the shoe properly by going for a run, hike, to the gym, or by doing any other activity that the shoe is intended for. Finally, we come back to the lab and finish up by cutting the shoe in half and doing the rest of the measurements including stack height, midsole softness, and more.

Knowing how the shoe scores in the lab gives us a more in-depth layer of objectivity. By doing the so-called Fact Check, we compare the brand’s statements to the lab results. Our members of the editorial team give an explanation of the comparison and recommendations, thanks to their extraordinary lab and sports background.

Example of a Fact check

fact-check-2

There have been a few changes to our lab testing process as we added more tests to check various characteristics.

Improved breathability test

We now assess how breathable the shoe upper is with the help of a smoke machine. We cover up the shoe mouth entirely and pump smoke inside the shoe. The amount of smoke and the speed at which it’s coming out of the upper demonstrates the shoe’s ventilation potential.

We also enhanced this test with a transparency check. The cut half of the shoe is put against a source of bright light. It allows us to see which areas of the upper are the most transparent and consequently, breathable.

Ditching lace stretch and lace slip tests

We no longer measure how stretchy or slippery the shoe’s laces are. The reason is we do not find them useful enough.

1.4 Methodology update: July 2021

When we test shoes in our lab, we follow a standard testing methodology to ensure that lab data is comparable across all shoe reviews. On this page, you’ll find an explanation of the lab tests and instruments (equipment) we are using. All the shoes that we test in the field and in the lab are tagged as Lab test

We dissect, cut, and tear shoes apart in our lab tests because minute details are what separates great shoes from the rest, and it’s our mission to help consumers buy the best shoes for their needs which requires us to know the details no matter how small. Why this works: Thanks to both field and lab tests, we're able to experience the shoe in full and write about its fit, performance, and looks covering both personal experience and lab data.

Weight measurements

We weigh the whole shoe before any test runs. Most of our visitors are from the US, where ounces are used. However, a portion are from countries that use the metric system, so we report on both the weight in grams and ounces. Our scale is accurate to 1g/0.05ounce.

Width measurements

We measure the width of the base of the shoe at its widest point in the forefoot and the heel. We use an 8’’ outside caliper accurate to .1mm.

We also measure the width of the upper where it attaches to the midsole in both the forefoot and the heel. Again at its widest points.

Stack heights and heel drop

To get the appropriate stack and drop measurements we cut the shoe in half and first measure the internal length of the shoe.

We flatten the shoe out to avoid any rocker or bend and measure from where the stroble board meets the heel and begins to curve upwards into the heel counter, to the inside edge of the toe bumper. We use an electronic digital caliper accurate to .01mm.

From this overall length measurement, we take the stack measurement of the heel at 12% of the total overall length, and the forefoot measurement at 75% of the total length measured again from where the stroble board meets the heel and begins to curve upwards.

This is in accordance with how and where World Athletics measures stack heights in running shoes for eligibility requirements.

We take all stack measurements with the insole included regardless if the insole is removable or not.

Drop measurements are a simple calculation of heel stack minus forefoot stack.

Insole thickness

We remove the insole and measure the thickness in the center of the heel and note if it’s removable or not.

Tongue thickness and gussets

We measure the thickness of the thickest part of the tongue.

We also note if and how it’s gusseted to the shoe. Gusset options include

  • None
  • 1 side
  • Both Sides (fully-gusseted)
  • Both sides (semi-gusseted)

Outsole thickness

The outsole is measured in a few ways. With the shoe cut in half we measure the thickness of the outsole in the forefoot and heel, as well as the thickness of any lugs that may be present (for example on trail shoes).

The measurement of any lug is from the base of the lug to the outermost edge of the lug and does not include the thickness of the base outsole.

Outsole hardness

We also measure the hardness of the outsole material with an HC durometer at room temperature.

Midsole hardness

We measure the hardness of the midsole foam with an HA durometer at room temperature in the heel of the shoe, and if there are dual-density foams we measure those hardnesses as well.

We also place the shoe in a 0-degree Fahrenheit freezer for 20 minutes and measure the hardness of the foam a second time to simulate cold-weather performance.

Heel stiffness

Heel stiffness is measured on a subjective 1-5 scale with 5 being the stiffest by squeezing the sides of the heel counter and pushing from the back of the heel counter.

Shoe flexibility

Using a digital force gauge we measure the resistance it takes for a shoe to bend at its natural bending point starting from 0 degrees and bending it all the way to 90 degrees. Most resistance will typically be found around 20 to 30 degrees.

We clamp the shoes to a workbench with a piece of wood over the natural breaking point where the forefoot is designed to bend naturally. Once clamped down we find the center point under the back heel, 1cm from the edge of the outsole.

The force gauge measures the maximum resistance in Newtons which is the number that we report on.

We make 3-5 measurements unless we find outliers in our data, in which case we make more measurements to get a reasonable finding. We use an average of the measurements.

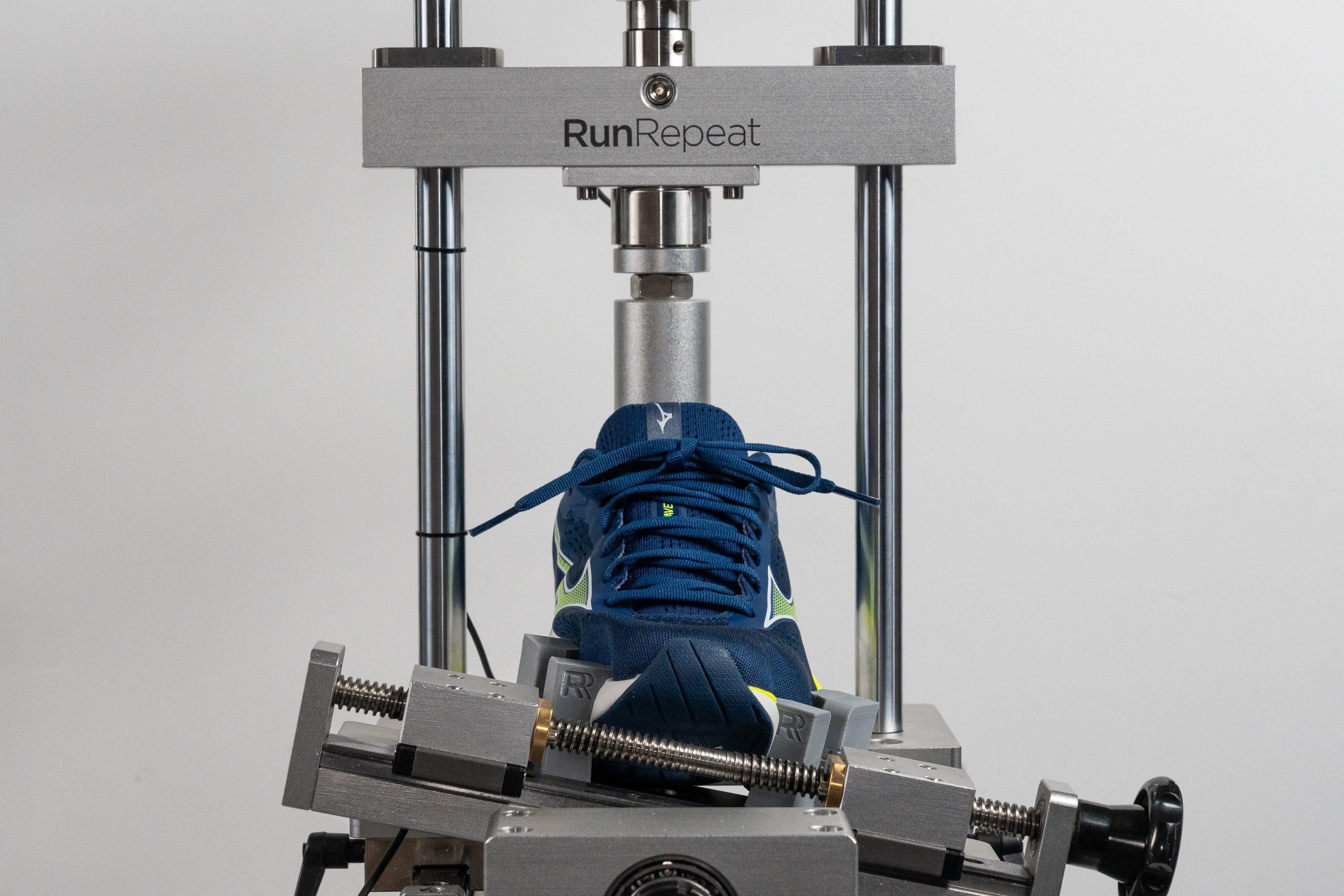

Torsional flex

On top of testing the flex of a shoe in the lab, we also test the shoe for torsional and longitudinal flex on a subjective 1-5 scale with 5 being the stiffest.

Lace stretch and slip

We remove the laces from the shoe to test two factors.

Lace stretch is quantified on a subjective 1-5 scale with 5 being the most stretchy simply by pulling the laces from end to end.

We also test the laces for slippage using our digital force gauge. We tie a loop knot in the lace and hang it vertically. From there we tie a basic “test knot” and tighten it with the forge gauge to 100N. We have another loop knot tied at the bottom end of the lace which we pull downward on until the “test knot” slips untied. We record the max effort taken to untie the knot.

Heel tab type

We note if the shoe has a heel tab. Options include:

  • Finger loop
  • Pull tab
  • None

Breathability

Breathability is measured on a subjective 1-5 scale with 5 being the most breathable by filling the shoe with smoke created by dry ice and boiling water.

Each shoe is filled with smoke using approximately 1 cup of dry ice chunks in a bowl filled with 2 cups of boiling water. The smoke is pushed through the shoe using a cooling fan.

This is filmed in slow motion at 240fps and analyzed for scoring.

1.1 In-depth review methodology

Note: We’ve stopped using this methodology in January 2022.

We have gathered a team of advanced athletes and shoe experts to create the most authoritative shoe reviews. They put each pair through vigorous field testing and write a review based on personal experience. They also attach photos and videos of the shoes, during their run, hike, gym session, or any other activity they take part in for an in-depth test.

All our testers have backgrounds that are nothing short of impressive. We work only with people who are passionate, enthusiastic, and very geeky about footwear and sports. Most of them compete at recreational or sub-elite level, or cover weekly mileages that are high above the average ones. The author of every in-depth review is shown at the top and their biography is added at the bottom of the review.

Here is a typical track record of our expert from the running category:

  • runs at least 30 to 40 miles a week, with some going up to 70 miles a week when training for a marathon
  • is a competitive runner on various distances (from 5K to ultra)
  • does all types of runs, from easy days and long hauls to fartleks and speed training
  • faces various terrains and weather conditions
  • sets PRs (some of the examples include 15:57 for a 5K and 3:28 for a marathon)

Learn more about our testers from other categories here.
