Arch Support for Runners: What, How and Why [In-Depth Guide]

Posted on 24 June, 2024 by Jovana Subic

Running and arch support

Arch support is not a quick fix. But, can running shoes with arch support improve your running experience? This is an in-depth guide that gives a necessary overview of arch height and running shoes with arch support.

Shoe fanatics should keep in mind that it’s the feet’s job to dissipate shock and actively stabilise during push-off. Not the shoes'.

When it does come to shoes, we cut them in half to better understand which arches they would work best for

If you’re experiencing pain, see a specialist. The purpose of this guide is to educate, not to make any medical diagnosis or recommendation.

Arches and why they matter

The human foot has three arches: medial longitudinal, lateral longitudinal and anterior transverse arch. In running, we usually focus on the medial longitudinal arch. Without them, we wouldn’t be able to stand, walk, run, jump.

Medial longitudinal arch

Arches matter because they help with:

  1. weight distribution,
  2. shock absorption (they help absorb impact while running), and
  3. propulsion (they provide energy to push us to the next step).

During the shock absorption and propulsion, the arch acts as a springboard. This springboard allows the middle of the foot to spread and close. That’s why it needs to be mobile (flexible).

Arch types based on their height

Based on the height of the arches, we differentiate 3 arch types:

  1. Low arches or flat feet
  2. “Normal” or medium arches
  3. High arches.

Whatever your arch type, your feet can be functional and healthy.

Flat feet, high arches and normal arches

In flat feet, the entire bottom surface of the foot lays on the ground (in the weight-bearing position). It’s characterised by the failure of all 3 arches. However, low arches are different and the foot doesn’t have full-surface ground contact. It usually means that the arches are weak and too flexible, which leads to a lack of control over foot mobility.

High arches are usually characterised by rigid arches. This means they are not so good at shock absorption, dampening the gait forces and adapting to changes in terrain.

We’ve covered both arch types later on in separate sections (Flat feet and High arches). This study has covered more about the relationship between arch height and arch flexibility.

How to determine my arch height?

We measure arch height in order to characterise the foot arch type. This is usually done in a sitting and standing position and the two heights are compared. There are numerous methods for arch height determination: medial longitudinal arch angle, navicular drop test, arch height index,... all of which require you to visit a specialist.

Here, we will explain the visual test you can do yourself: the footprint analysis.

DIY: The wet test (footprint analysis)

Runners love this analysis, which makes it the most popular one.

  • Pros: quick, easy, DIY, no fancy equipment needed.
  • Cons: it doesn’t tell you the exact height of your arch, no standardised data to compare to, rather subjective.

Here’s how to do it:

How to do a wet test

Got your footprint? Compare it to the results:

Footprint analysis using a wet test

It’s obvious that the line between the flat arch and the normal arch, as well as the line between the normal and the high arch, is rather blurry unless your foot belongs to the extreme (or perfect middle). Other than that, this test is a good indicator of your arch type.

Arch support and running shoes

“The more the merrier” can’t be applied to arch support. Sometimes it can get things worse by sending unreasonable stress to different joints and ligaments (as covered in this study and this book).

Based on the arch type, you can look for the shoes that might suit you.

Arch height Shoes to look for
Low or flat feet Flat feet running shoes (stability shoes)
Normal or medium Medium arch running shoes (stability or neutral shoes)
High High arch running shoes (neutral shoes)

Arch height is usually tightly connected to pronation. In this overview, you can see how it relates not only to pronation but also to the shoe wear and the type of shoes you should look for.

Arch type, foot mechanic and recommended running shoes

This stepping away from the “normal” or medium condition means our ankles compensate and that’s why overpronation tends to happen in feet with low arches and supination tends to happen in feet with high arches.

neutral shoe vs stability vs race shoe
Difference in geometry and design: stability shoe (up) with a stiff heel counter, side walls, sole flare vs. a neutral shoe (middle) vs a race shoe (down) with a sock-like upper and no stability elements and

If you’re curious how all these shoes “feel” in your hands, this overview will help. It’s obvious that going from neutral running shoes over stability running shoes to motion control running shoes, the degree of arch support grows. It’s not only arch support, though, but also other features that help reduce the excessive pronation and stabilise your foot.

How to recognize running shoes with stability features

arch support details in running shoes
Stability elements that make shoes good for runners who need arch support due to flat(ter) feet: 1) stiff heel counter with a lot of heel padding 2) dual-density midsole and a plate that makes the base stiff 3) heel bevel 4) side walls 5) a lot of ground-contact with the outsole 6) forefoot flare 7) heel flare

Pronation should not be defined by arch height only, as described in our in-depth guide on pronation. However, this is the most frequently used template and it tends to work for the majority of runners who have no serious issues. That’s why you should always consult a podiatrist if you’re experiencing any discomfort.

3-step guide: How to choose running shoes for low arches or flat feet

If you have low arches or flat feet, you’ll probably need arch support in running shoes.

1) Determine your arch type

Do you have rigid flat feet, flexible flat feet, or low arches? If you already know it, skip to step 2.

“Flat feet'' as a term has many meanings but doesn’t have a universal clinical definition. We’ve decided to follow Staheli because he divided flatfoot into only 2 groups: physiological and pathological flatfoot.

  • Physiological flat feet: also called collapsed arches or flexible flat feet, they happen due to muscle weakness.
  • Pathological flat feet: also called rigid flat feet, they have anatomically flat arches.

Flexible and rigid flat feet

Still not sure which one you have? You can do two tests.

  • Tiptoe test: rise up and stand on your tiptoes. If your arches form again, you have flexible flat feet.
  • Jack’s test: have someone passively dorsiflex your great toe. If you have flexible flat feet, your arch will become noticeable.

Tip toe and Jack test

This is how these two types of flat feet differentiate:

Flexible flat feet Rigid flat feet
The arch is visible when there is no weight (ex. while sitting, on toes, or lying down); it disappears when weight is put on the legs. Arch is not visible; remains flat in all positions.
Usually painless Cause pain during everyday activities
Usually affect both feet Usually affect one or both feet

This means that, based on your arch type, you should look for

  • Stability running shoes: if you have flexible flat feet and low arches (mild overpronation), or
  • Motion-control shoes: if you have rigid flat feet (severe overpronation).

Both offer the support needed for overpronation; it’s the level of support that differentiates them. The line between these two types of shoes is often blurry. That’s why comfort should always be your #1 guidance.

Now that you know your arch type, you should look for features of the shoes that will make your run more comfortable and safe.

2) Features to look for in running shoes for flat feet and low arches

Running shoes for flat feet and low arches (so called stability shoes) often feature 2 or more of the following:

Medial post. This is a piece of plastic or firm foam located on the medial (inner) side, usually under the arch. It prevents (to a certain degree) the collapsing of the arch and the inward roll of the ankle.

Closer look at the medial post design

Dual-density midsole: appears as a firmer foam on the inside or under the arch or in other shapes that make the shoe more stable. In case of Hoka's trademarked technologies, it can be shaped like letter J or letter H as well.

dual density midsoles in shoes for arch support
Differently coloured midsoles because they are of different densities (so-called dual-density midsole)

When it comes to how soft these different foams are, we also dig deep into that: we measure both softness with a durometer. We cut the shoe in half and stick the shore A durometer needle into the foam. The lower the number, the softer the shoe.

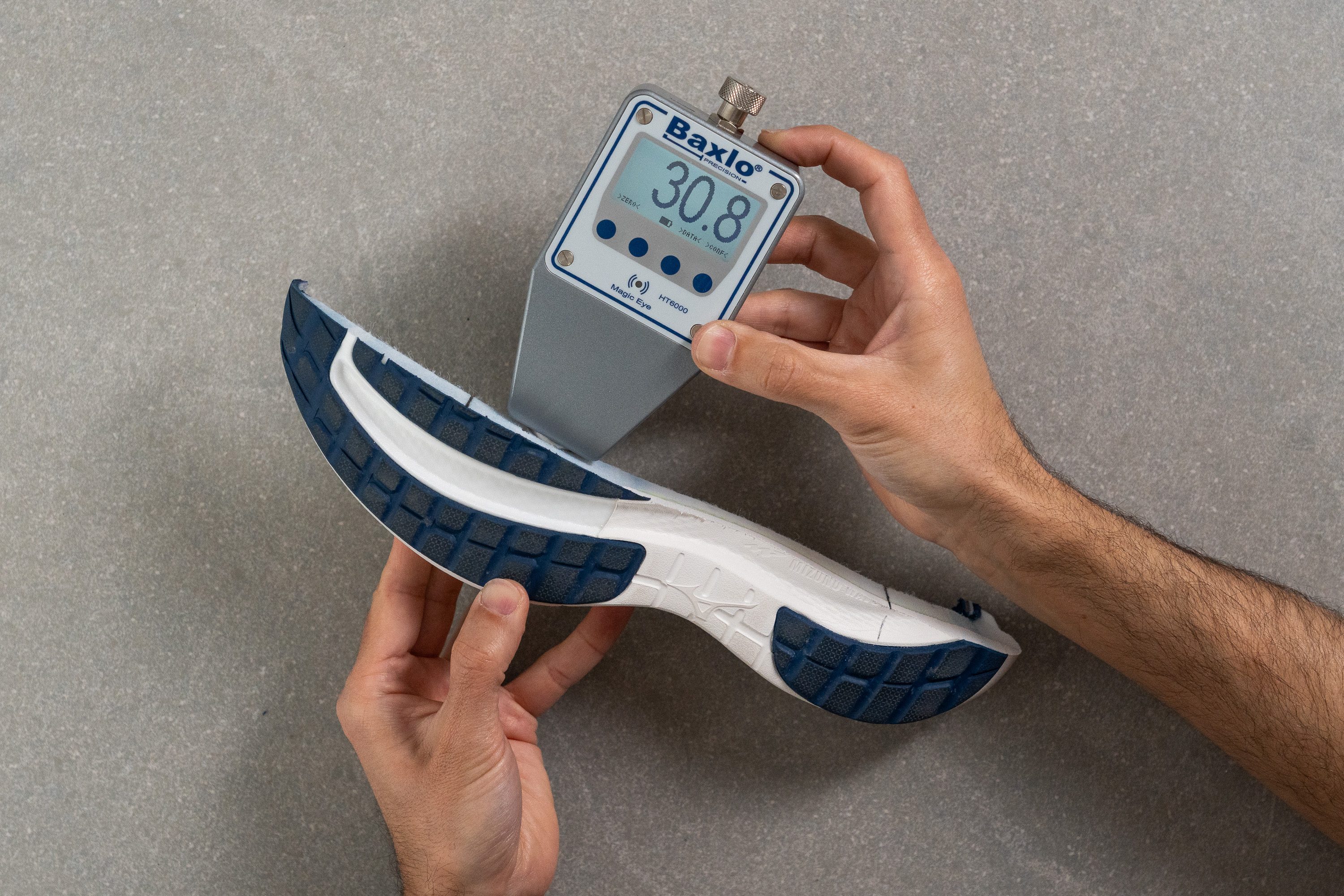

Measuring the softness of the midsole in RunRepeat lab

When the shoe features a dual-density midsole, we take both measurements.

Measuring the softness of a dual density midsole in runrepeat shoe lab
Taking softness measurements on a dual-density midsole

In case you prefer softer midsoles, here are the softest shoes for those who need stability:

And if you enjoy a firmer ride, here are the firmest shoes for those with flat feet or low arches:

Stiff and padded heel counters. The stiffness of the heel counter allows for a heel to stay put and not to wobble. The more stability, the merrier! And padding usually helps with the lockdown. Usually only race shoes have no padding and insanely soft heel area.

padded and stiff heel counters in arch support shoes
A lot of padding in the heel collar + stiff internal heel counters present in stability running shoes
external heel counters in arch support running shoes
External heel counters made of synthetic materials (up) or plastic (down) present in running shoes that offer arch support

Before we cut shoes in half, we test the stiffness of the heel counter. We push it and squeeze it and assign it a rating of 1-5, where 1 is the least stiff.

Heel counter that scored 5/5 (the stiffest) rating on our test

A stiffer base is more stable, and in stability shoes, this is often accomplished by inserting plates or rods in the midsole.

In our lab, we test

  1. longitudinal stiffness by bending the shoe to 90 degrees using a digital force gauge
  2. torsional stiffness by twisting the shoe in our hands.

Measuring longitudinal stiffness in RunRepeat lab

The higher the number on our force gauge, the stiffer the shoe.

Assessing torsional rigidity in RunRepeat lab

We assess the torsional rigidity on a 1-5 scale, where 5 is the stiffest.

Wide base ensures planted landings. By avoiding narrow and high platforms, as you’d see in some race shoes, we're making the ride more secure.

narrow vs wide midsoles in arch support shoes
Up: tall and narrow midsoles vs down: tall and wide midsoles

When it comes to how wide the base is, in our shoe lab, we measure it in 2 places: at the forefoot and at the heel. Of course, for heel strikers, the width of the base at the heel is more important as they want that extra stable landing.

base width measurements in arch support shoes
Using a digital calliper to measure the width of the base at the forefoot (left) and heel (right)

Full-ground contact outsole means that a very big percentage of the outsole touches the ground. This is great for extra stability. But, some shoes have cutouts in the outsole to lose weight or to improve flexibility. That is not a bad thing, but when it comes to stability, more ground contact is better.

different outsole design in stability and neutral shoes
Much more ground contact is allowed in stability shoes 1) and 2) while less direct ground contact is possible in neutral shoes marked as 3) and 4)

Side walls are midsole extensions that look like walls because they extend upwards. They provide more structure and prevent the foot from wobbling.

side walls in arch support running shoes
Noticeable sidewalls in stability running shoes

Heel bevel is basically a curved back of the heel. It's important because it imitates the shape of our heel bone which is curved. This helps with landing and transitions, especially for heel strikers.

Different heel bevel designs: for those who overpronate and land on the outer side of the heel, the bevel angled laterally (shoe on the right) is usually recommended

Sole flare is a sole protrusion that can appear both on the medial and lateral sides of the shoe. For heel strikers, it’s important that it’s present at the heel. This means that the protrusion midsole becomes wider than the upper as seen in the image below.

heel sole flare in stability shoes
Heel flare, both medial (1) and lateral (2) noticeable on the shoe on right; the midsole protrusion is significantly wider than the upper

Those who pronate at the heel should look for a medial heel flare. Those who pronate at the forefoot can look for medial forefoot flare.

(1) Medial and (2) lateral forefoot flare visible on the shoe on the right vs. no flares on the shoe on the left

Structural upper overlays are overlays that are made of stiffer materials like synthetics or plastic and, with this stiffness, they give extra support and superb lockdown.

Different designs of overlays that give additional stability

Trademarked technologies found in shoes for flat feet or low arches

Different brands develop different technologies. We'll give a short overview of more popular ones here. Many are easily recognisable in case you don't want to remember their names.

GuideRails by Brooks

GuideRails are made of 2 pieces of firmer foam on either side of the heel. The inside piece reduces the rolling of the foot inward, while the outside piece is firmer and higher, and it stabilises the heel by reducing its outward motion.

brooks shoes guide rails technology
GuideRails technology implemented on Brooks shoes

All the shoes from Brooks that utilise this technology are stability shoes, they have “GTS” (for go-to stability) in their name, and they are easy to recognise as the newer models have the GuideRails design in stripes.

GuideRail by Altra

Similar to the GuideRails from Brooks. There's a higher and firmer foam that offers medial support (on the inner side of the shoe).

guiderail technology in altra running shoes
Provision 7 and Paradigm 7 featuring GuideRail technology where support is focused on the medial side

J-Frame by Hoka

J-frame is a supportive structure made of denser foam that gives extended heel support. This shape literally hooks around the heel forming the J shape. This shape is often of different colour so it's easy to notice. In the image below, firmer foam is grey, softer is white.

hoka j frame technology for stability
Hoka Gaviota 4 outsole with a noticeable J-shaped firmer foam that we highlighted in yellow

H-Frame by Hoka

H-Frame is a support structure made of denser foam that is more shaped like a number 8 than a letter H. The cutouts allow the foot to be in direct contact with the plush foam, which results in a stable, soft shoe.

Hoka H frame for stability
Hoka Gaviota 5 cut into pieces with the H-frame (we sketched the left half in blue)

4D guidance system by Asics

4D means that they added 4 stability elements to the shoe. It includes

  1. increased heel bevel
  2. sculpted midsole
  3. wider base
  4. medial post.
Closeup of all 4 elements of the 4D guidance system seen in Asics Gel Kayano 30

3D guidance system by Asics

3D means that Asics implemented 3 stability elements. It includes

  1. increased heel bevel
  2. wider base
  3. forefoot flare.
Close-up of all 3 elements of the 3D guidance system seen in Asics GT 2000 12

Mizuno’s Wave plate

This plate helps prevent the arch from collapsing and offers stability. It’s easy to notice on the shoe because it’s a different colour from the midsole.

Mizuno Wave Plate (red) exposed on the outsole and visible on the lateral and medial side of the midsole
This is a variation of the Wave plate where the rubber wall is integrated into it (the shoe in the picture is Mizuno Wave Horizon 6)

Mizuno’s Double fan-shaped wave

Similar to the Mizuno Wave plate but with a one-wave structure on the lateral side that cushions the foot AND a double fan-shaped wave on the medial side that prevents the arch from collapsing. It is present in Mizuno Equate shoes.

3) Try the shoe on and make sure it’s comfortable

Just because a specific shoe sounds great “on paper”, doesn’t mean it will work for you. Try it on and keep it only if it doesn’t take away from your running experience and overall comfort.

After a while, your feet muscles will get stronger. When buying another pair of shoes with arch support, it’s recommended to try shoes with less support and see if they work as well.

BONUS tip: not all stability and motion control running shoes work in the same way (feature list above, remember?). That’s why it’s imperative to give more than one shoe model a chance.

Arch support for high arches

People with high arches usually supinate (underpronate) and shoe brands don’t make specific shoes for them - they’re in the same bucket with people with normal (medium) arches. That’s why it’s important to know what to look for in a neutral running shoe

Features of running shoes for high arches

When shopping for neutral running shoes for high arches it’s recommended that you look for these features:

  • Neutral running shoes must be comfortable, no exceptions.
  • Cushioned throughout, especially at the forefoot. Usually, high-arched runners land on their forefoot, so additional cushioning is welcomed. It will help with shock absorption.
  • Under arch support, if it feels good.
Neutral running shoe with 1) cushioned forefoot for forefoot strikers 2) comfortable and unobtrusive arch area 3) midfoot upper with no structural overlays that are often found in stability shoes 4) soft heel counter 5) flexible base that is not as wide as in stability shoes

Because runners with high arches tend to land on the forefoot, it's important they find shoes that have enough cushioning in that area. If you're already on this quest, you can look for exact stack height measurements in our reviews.

Per WorldAthletics guidelines, we measure heel stack height at 12% of the internal shoe length and forefoot stack height at 75%.

World Athletic standards for measuring stack height and heel drop
Marking the 12% of the internal shoe length mark before measuring heel stack height
Forefoot and heel stack height measurements
Using a digital calliper to measure the forefoot (left) and heel (right) stack height in RunRepeat lab

Here's our list of neutral running shoes with the highest forefoot stack height (these lists are dynamic, they update as we publish new shoe reviews):

And, in case you still want as much foam as possible at the heel, here's the "other way around" list:

Based on these numbers, we calculate the heel to toe drop. Forefoot strikers might enjoy a lower drop than those who land on their heels but it depends on the running form a lot, as well as on current and previous injuries.

To learn which heel drop might be best for you, while taking account your running form, pronation and injuries, read our Ultimate guide on heel drop

Mythbusting: arch support nonsense ends here

We’re going to list facts that might be contradictory to what you’ve read/known before, but are worth knowing.

  1. How your feet work (function) matters more than their arch height. For example, this study has shown that impact forces during running don’t differ for different arch heights.
  2. Strength and mobility of your arches matter more than their height. Arch height wasn’t found to be a significant etiologic factor for overuse injuries in running (you can read more about this here).
  3. Low arches don’t equal flat feet
  4. Not all flat feet are the same.
  5. Running shoes will not “fix” your arches nor pronation permanently. But, if your feet need special attention, a podiatrist will know that and might recommend insoles, orthotics, even surgery.
  6. Not all runners with high arches underpronate, just like not all runners with flat feet overpronate. Pronation is more than arch height.
  7. Arch support is not reserved for flat feet only. Runners with all types of arches might appreciate (and benefit from) arch support.
  8. Running shoes should be recommended based on the individual running mechanic. When that’s not possible, look at arch types (as explained here). This study has shown that selecting running shoes based on arch height had little influence on injury risk (in military training).
  9. When it comes to treatment, contrary to the popular belief, doing strength exercises for feet will not always help - whether you have flat feet or high arches. These two studies
      have explained this in-depth. For this, an individual approach is imperative.

Running shoes with arch support cost more

Using RunRepeat data, we can see that the more support you look for in a shoe, the more money you should set aside.

Price comparison of running shoes grouped by stability features

We can also see that only 15% of running shoes on the market were made for people with low arches or flat feet.

Prices of shoes with arch support

Author
Jovana Subic
Jovana Subic
Whether it's a vertical kilometre or an ultra, climbing in the Alps or exploring local mountains, Jovana uses every opportunity to trade walls and concrete for forests and trails. She logs at least 10h/week on trails, with no off-season, and 4x more on research on running and running shoes. With a background in physics and engineering management, she prefers her running spiced with data.
